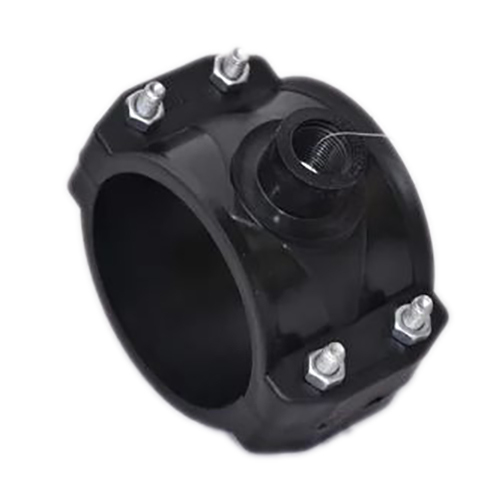

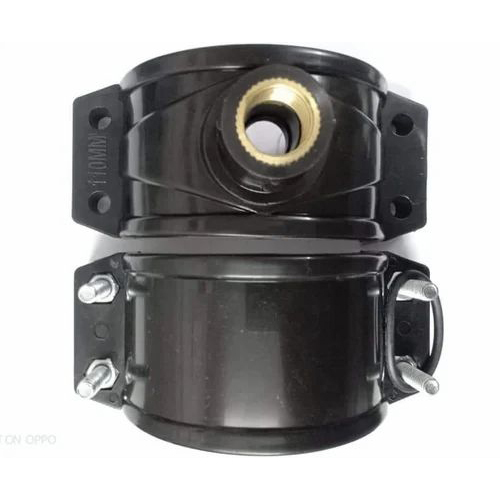

SERVICE SADDLE

• Application
• other, Municipal and Agricultural Pipeline Systems

• Coating Type
• Uncoated, Brass Insert

• Color
• White

• Connection
• Other, Saddle Clamp

• Connection Type
• Bolt-on Clamping

• Diameter
• 1/2 to 2 outlet sizes

• Flexibility
• Rigid

• Length
• 90 mm (approx.)

• Material
• Other , Polypropylene (PP) with Brass Insert

• Material Grade
• High-quality Engineering Grade PP

• Outer Diameter
• 63 mm to 160 mm (Customizable)

• Product Type
• Other, Service Saddle

• Rated Pressure
• 16 bar (maximum)

• Sealing Type
• Rubber O Ring Sealing

• Section Shape
• Other, Flat Saddle Section

• Shape
• Other, Rectangular Body with Circular Outlet

• Standard
• Other, IS:3000/ISO 9001

• Surface Treatment
• Other, Smooth, Non-corrosive Finish

• Temperature Range
• -10C to 60C

• Tensile Strength
• 4000 psi (Polypropylene)

• Thickness
• 5-10 mm (Body)

• Thread Type
• BSP (British Standard Pipe)

• Tolerance
• 0.1 mm

• Usage
• Pipe Branch Connections, Irrigation, Water Distribution

• Yield Strength
• 2800 psi
